Mobile Cleaning System
Hot Water Pressure Washers
Gas Engine Series

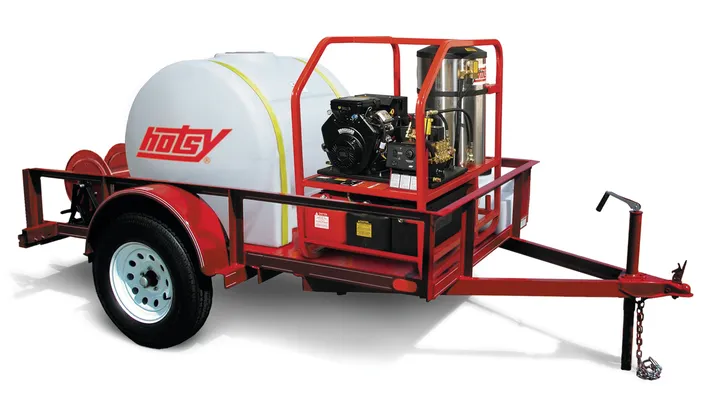

Hotsy offers an affordable trailer to provide mobile cleaning anywhere. It’s easy – you simply select a hot water pressure washer from a list of available units designed to fit on the trailer and you’re ready for on-site cleaning.
3-way ball valve allows for the water flow to be diverted from the holding tank to a direct water feed from a hose faucet
Wand storage and signage location
Features 15-inch white spoke wheel assembly
Axle assembly features a leaf-spring suspension under-carriage rated at 3,500 lbs.; DOT approved


Frame features a license plate holder and recessed lights; all electrical wiring is recessed within the frame
Heavy-duty chassis is made of durable 10 gauge steel; 2-by-4 inch formed channel design covered with a powder-coated wrinkle black finish for weather protection
200 Gallon water tank features a 7-inch access port plus a 2-inch drain, 1-inch float valve, and 50-mesh outlet filter
Durable steel hoop holds the hoses and is hose reel ready. Optional hose reels (shown) connect to the chassis quickly; holds up to 150 ft. of high-pressure hose; 2nd reel holds 100 ft. garden hose
Standard high-density white polyethylene water tank with a 200-gallon capacity
Frame features a license plate holder and recessed lights; all electrical wiring is recessed within the frame
Heavy-duty chassis is made of durable 10 gauge steel; 2-by-4 inch formed channel design covered with a powder-coated wrinkle black finish for weather protection
200 Gallon water tank features a 7-inch access port plus a 2-inch drain, 1-inch float valve, and 50-mesh outlet filter
Durable steel hoop holds the hoses and is hose reel ready. Optional hose reels (shown) connect to the chassis quickly; holds up to 150 ft. of high-pressure hose; 2nd reel holds 100 ft. garden hose
Standard high-density white polyethylene water tank with a 200-gallon capacity

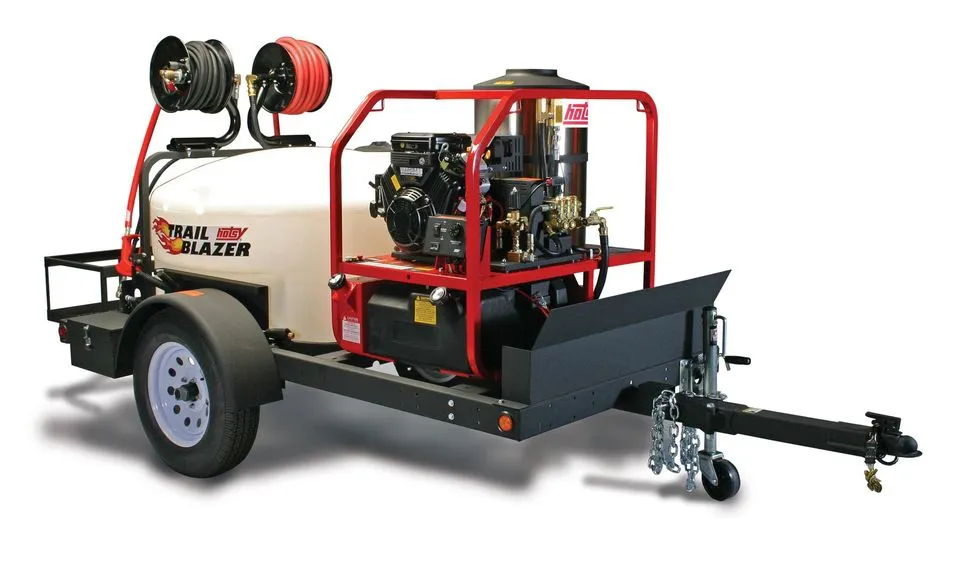

shown with Hotsy 1080BE pressure washer; pictured with optional rock guard, tool box & hose reel
Swivel jack trailer tongue assembly is made to handle up to 1,000 lbs. and features a 2-inch ball coupler for quick & easy hook up of the trailer; 5/16-inch chains are included for additional safety
39-inch tongue length with a swing-away hinge (rated to 3,500 lbs) means less storage space is needed
Includes rear receiver accessory mount (not for towing) to accept optional rear utility rack
Trailer Dimensions 136” L x 66” W x 52” H Trailer Weight: 543 lbs. Shipping Weight: 1043 lbs. does not include pressure washer
